JC Casting is a trusted of 17 4 PH stainless steel casting manufacturer and supplier. We have our own foundry for investment casting and sand casting.Our 17-4 stainless steel castings are strong, durable, and can resist corrosion well. Whether you need small parts for a project or large components for an industrial job, they can meet your demand!
What is 17 4 PH stainless steel?
Its name is from its chemical composition which is about 17% chromium and 4% nickel. Alloy 17-4PH stainless steel (UNS S17400, Type 630 ), is a chromium-nickel-copper precipitation-hardening martensitic stainless steel with an addition of niobium. It is the most used stainless steel alloy of all precipitation hardening stainless steel casting.
17-4 stainless steel casting typical application is for high strength and corrosion resistance required. The desired strength and toughness can be controlled in the heat treatment process.
17-4 PH Stainless Steel Composition for Casting
| C | Si | Mn | P | S | Ni | Cr | Cu | Nb |
| ≤0.07 | ≤1.00 | ≤1.00 | ≤0.040 | ≤0.030 | 3.00-5.00 | 15.0-17.5 | 3.00-5.00 | 0.15-0.45 |
17 4 PH Stainless Steel Casting Process in JC Casting
- Investment Casting (Lost Wax Casting, Precision Casting)
- Sand Casting
17 4 PH Stainless Steel Casting Heat Treatment
All 17-4 PH stainless steel castings need solution treatment. Heating the castings and material to 1050°C, holding the 30 min/in. [1.2 min/mm]. Then cooling to below 30°C.
Heat treatment technology is a key factor for the success of 17 4 PH stainless steel castings. If the hardness is too high, the castings tend to be brittle. If the hardness is too low, they won’t meet the mechanical performance requirements. If you have any difficult problems regarding the heat treatment of 17 – 4 stainless steel castings, please feel free to contact us!
Advantages of 17-4 PH Stainless Steel Casting
- High strength. High hardness.
- Good castability, minimum distortion upon heat treatment.
- Good welding performance
- Excellent corrosion resistance performance.
- Excellent mechanical properties and fatigue properties.
17-4 PH Stainless Steel Castings Usages
17 4 PH Stainles Steel Castings usages are Including:
- High-strength parts with certain corrosion resistance requirements.
- aircraft fittings, Aerospace-structural, and parts
- Oil path, mechanical seals, and Components
- Propeller shafts, pins, and valve spindles
- Food Process Equipment
- Nuclear Waste Processing and Storage
- Pulp and Paper- paper mill equipment

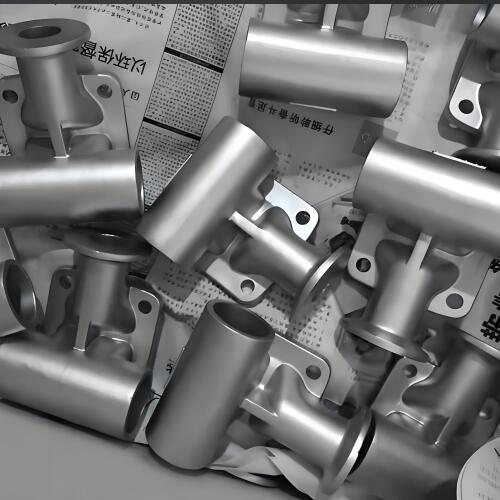

- Oil field valve parts
- Chemical process equipment
- Fasteners
- Valves
- Pump shafts
- Gears
17-4 PH Stainless Steel Castings Manufacturer
JC Casting Foundry is a skilled manufacturer in customized 17-4 ph stainless steel investment castings. We can customize 17-4 ph stainless steel castings in different sizes and shapes. Additionally, we can also provide extra machining, surface treatment, heating treatment services as your requirement. If you have any inquiries about 17-4 ph stainless steel investment casting, please email us: info@jccasting.com
